Bonesoundz Aware User Manual

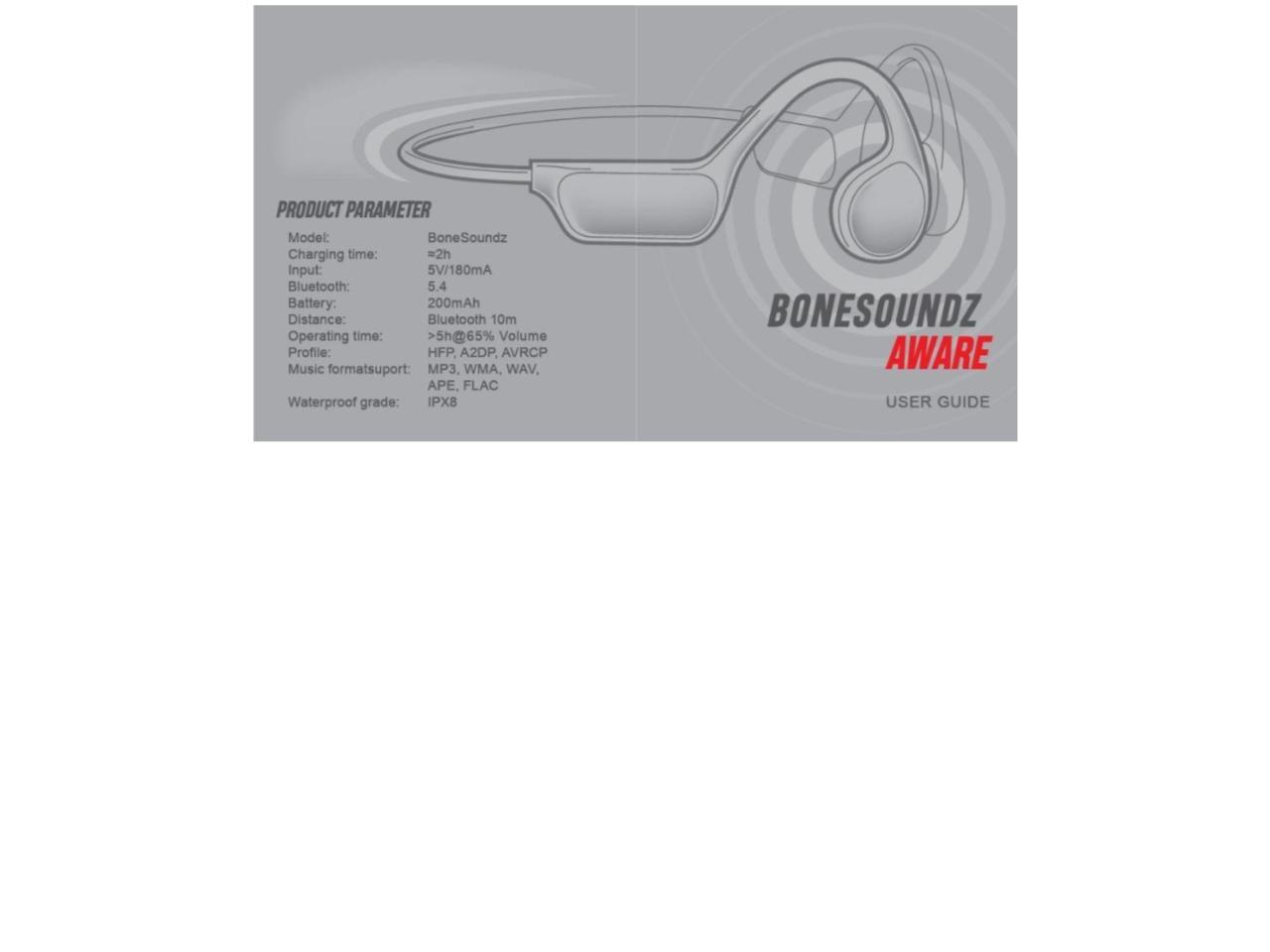

PRODUCT PARAMETER

• Model: BoneSoundz

• Charging time: ≈2h

• Input: 5V 180mA

• Bluetooth: 5.4

• Battery: 200mAh

• Distance: Bluetooth 10m

• Operating time: >5h @ 65% Volume

• Profile: HFP, A2DP, AVRCP

• Music format support: MP3, WMA, WAV, APE, FLAC

• Waterproof grade: IPX8

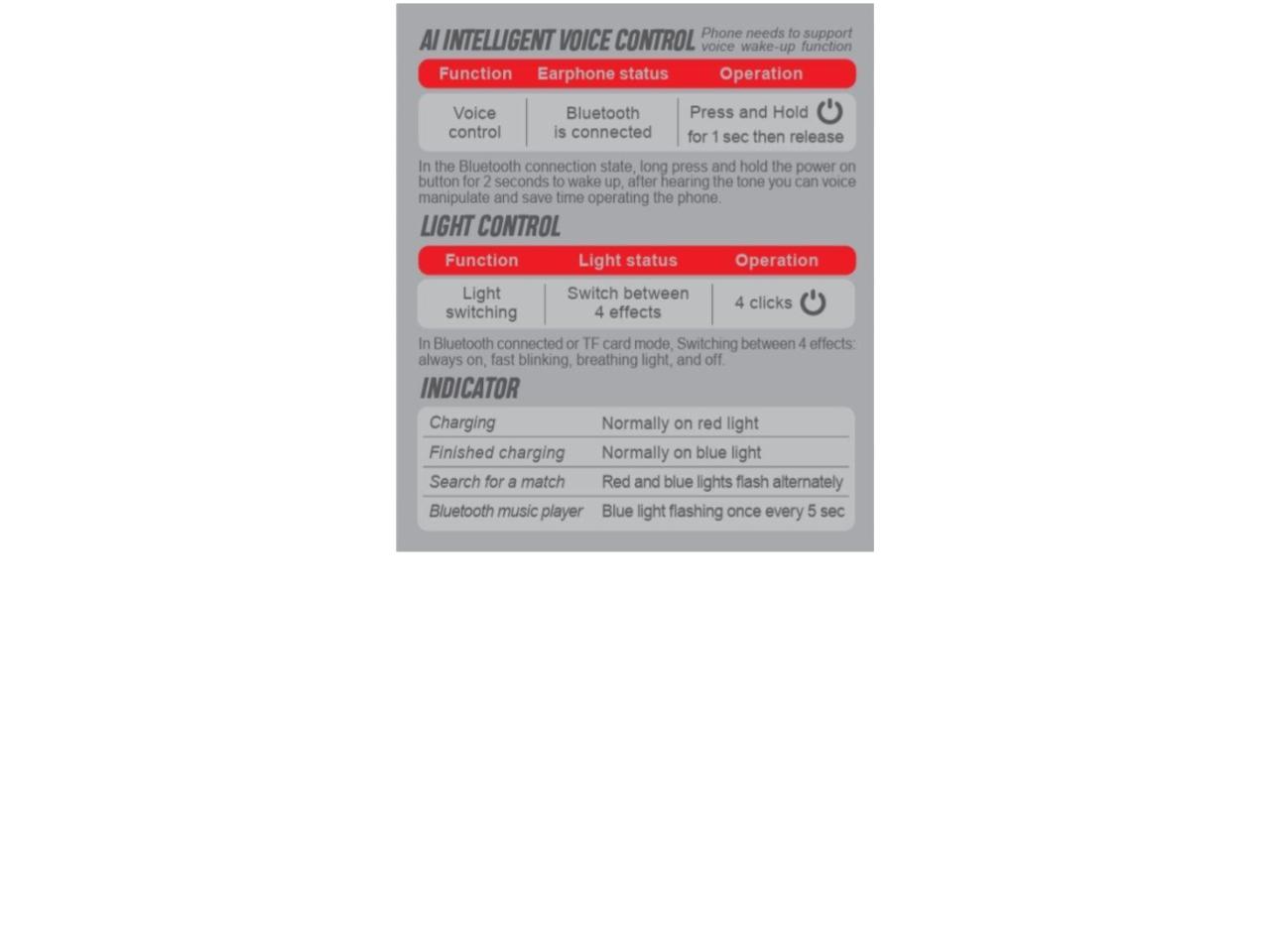

AI INTELLIGENT VOICE CONTROL
Phone needs to support voice wake-up function.

Function	Earphone status	Operation
Voice control	Bluetooth is connected	Press and hold for 1 sec then release
		In the Bluetooth connection state, long press and hold the power on button for 2 seconds to wake up, after hearing the tone, you can voice manipulate and save time operating the phone.

---

LIGHT CONTROL

Function	Light status	Operation
Light switching	Switch between 4 effects	4 clicks
		In Bluetooth connected or TF card mode, Switching between 4 effects: always on, fast blinking, breathing light, and off.

---

INDICATOR

Charging	Normally on red light
Finished charging	Normally on blue light
Search for a match	Red and blue lights flash alternately
Bluetooth music player	Blue light flashing once every 5 sec

How to use LED light headband

1. Once the headset has been connected to the phone via Bluetooth, in order to turn on the red lights, press the switch button on top 4 times in quick succession. This will activate the Red lights in constant mode.

2. Press the switch button 4 times again, the Red Lights will flash in fast blinking mode.

3. Press the switch button 4 times again, the Red lights will activate and then blink off in a slower mode.

4. Press the switch button 4 times again, the Red lights mode will turn off.

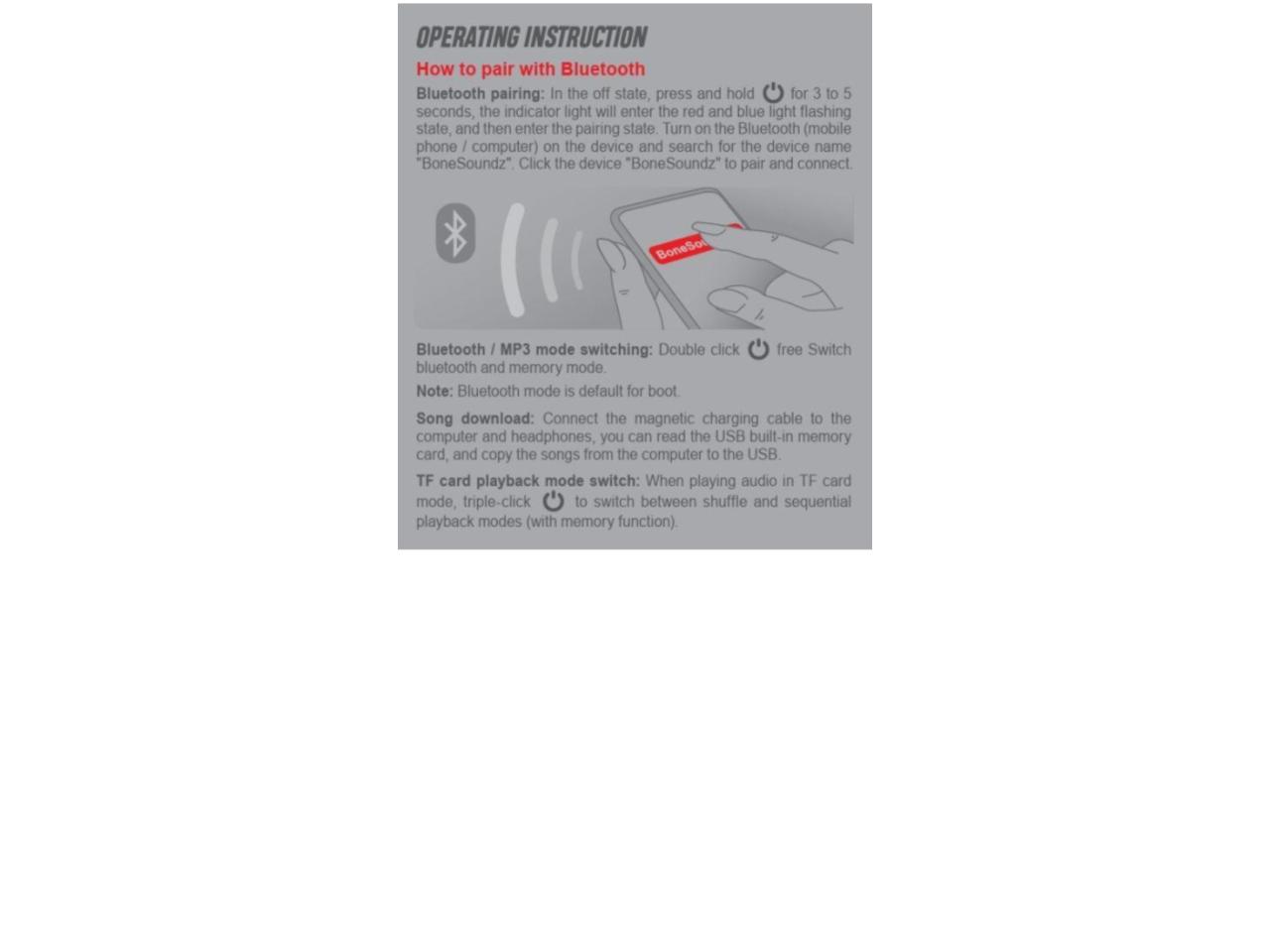

OPERATING INSTRUCTION
How to pair with Bluetooth

• Bluetooth pairing: In the off state, press and hold for 3 to 5 seconds, the indicator light will enter the red and blue light flashing state, and then enter the pairing state. Turn on the Bluetooth (mobile phone/computer) and search for the device name "BoneSoundz." Click the device "BoneSoundz" to pair and connect.

• Bluetooth / MP3 mode switching: Double click to switch between Bluetooth and memory mode.
  Note: Bluetooth mode is default for boot.

• Song download: Connect the magnetic charging cable to the computer and headphones, you can read the USB built-in memory card, and copy the songs from the computer to the USB.

• TF card playback mode switching: When playing audio in TF card mode, triple-click to switch between shuffle and sequential playback modes (with memory function).

ANSWER THE PHONE

Function	Earphone status	Operation
Answer the call / Hang up	Phone calls in	Click
Decline the call		Press and Hold for 2 sec
Volume control		Click + / -
Phone / Bluetooth earphone switch	Calling	Press and Hold for 2 sec

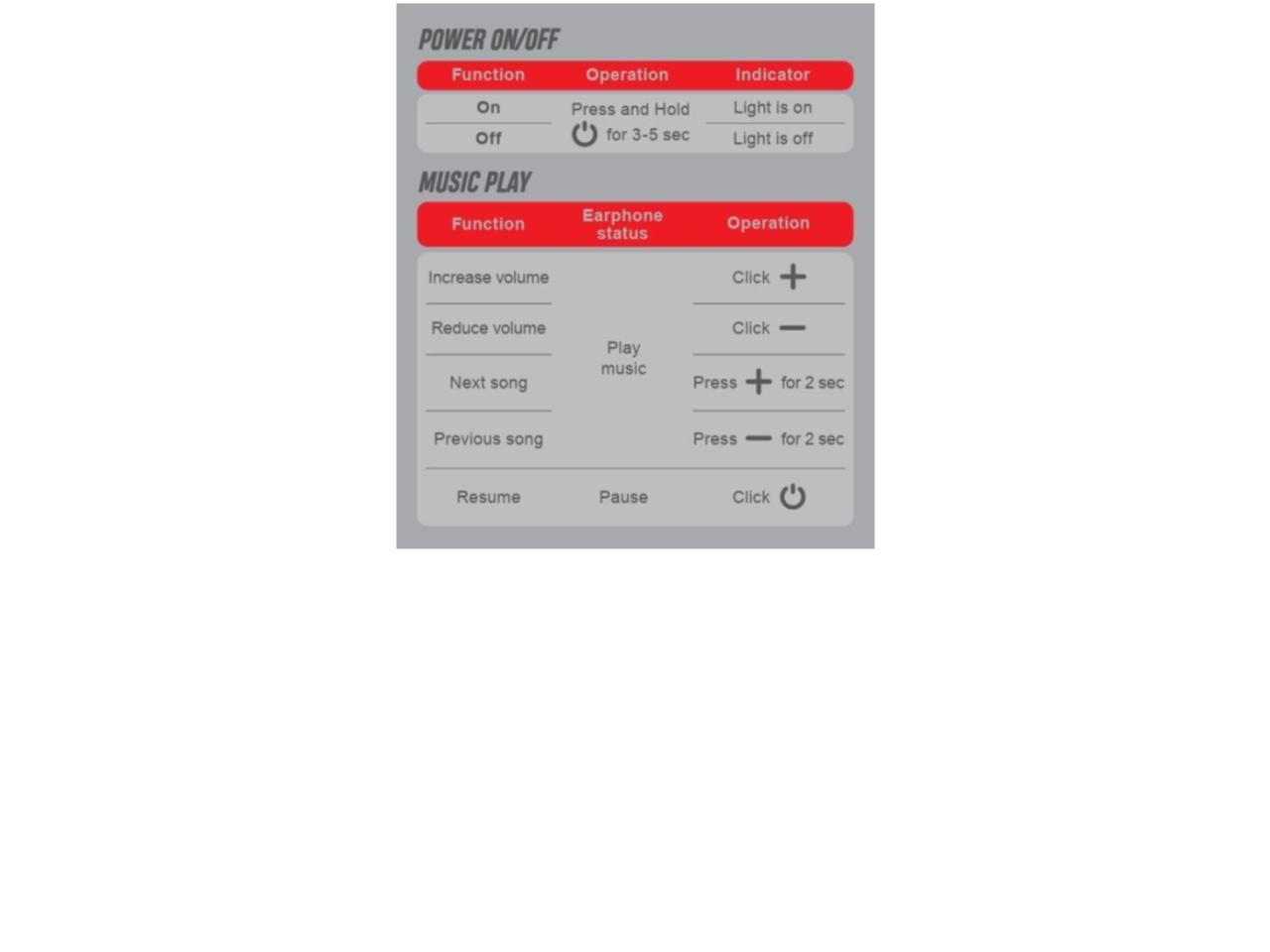

POWER ON/OFF

Function	Operation	Indicator
On	Press and Hold for 3-5 sec	Light is on
Off	Press and Hold for 3-5 sec	Light is off

---

MUSIC PLAY

Function	Earphone status	Operation
Increase volume		Click
Reduce volume		Click
Next song		Press + for 2 sec
Previous song		Press - for 2 sec
Resume		Click
Pause		Click

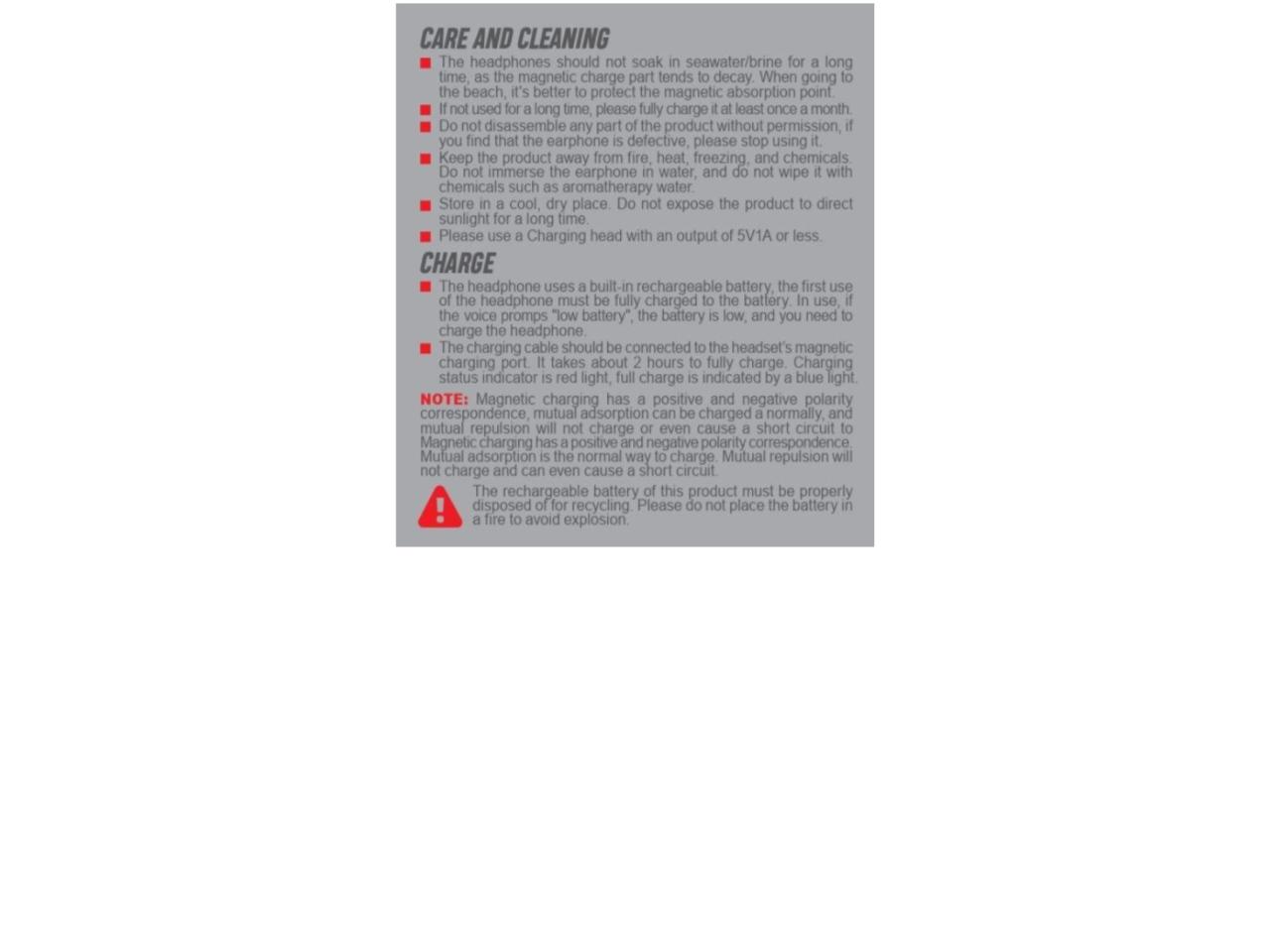

CARE AND CLEANING

• The headphones should not soak in seawater/brine for a long time, as the magnetic charge part tends to decay. When going to the beach, it’s better to protect the magnetic absorption point.

• If not used for a long time, please fully charge it at least once a month.

• Do not disassemble any part of the product without permission, if you find that the earphone is defective, please stop using it.

• Keep the product away from fire, heat, freezing, and chemicals.

• Do not immerse the earphone in water, and do not wipe it with chemicals such as aromatic spray water.

• Store in a cool, dry place. Do not expose the product to direct sunlight for a long time.

• Please use a charging head with an output of 5V1A or less.

---

CHARGE

• The headphones use a built-in rechargeable battery. The first use of the headphone must be fully charged to the battery. In use, if the voice prompts “low battery,” the battery is low, and you need to charge the headphone.

• The charging cable should be connected to the headset’s magnetic charging port. It takes about 2 hours to fully charge. Charging status indicator is red light, full charge is indicated by a blue light.

NOTE:
Magnetic charging has a positive and negative polarity correspondence, mutual adsorption can be charged normally, and mutual repulsion will not charge or even cause a short circuit to the charging port. Magnetic charging has a positive and negative polarity correspondence. Mutual adsorption is the normal way to charge. Mutual repulsion will not charge and can even cause a short circuit.

• The rechargeable battery of this product must be properly disposed of for recycling. Please do not place the battery in a fire to avoid explosion.
